Documentation

When to use it

Use the Resources section when:

• learning TEI and manuscript studies,
• accessing exercises, guides, or teaching materials contributed by others,
• providing starter materials for in-class exercises,
• preparing your own teaching session and wanting reusable examples.

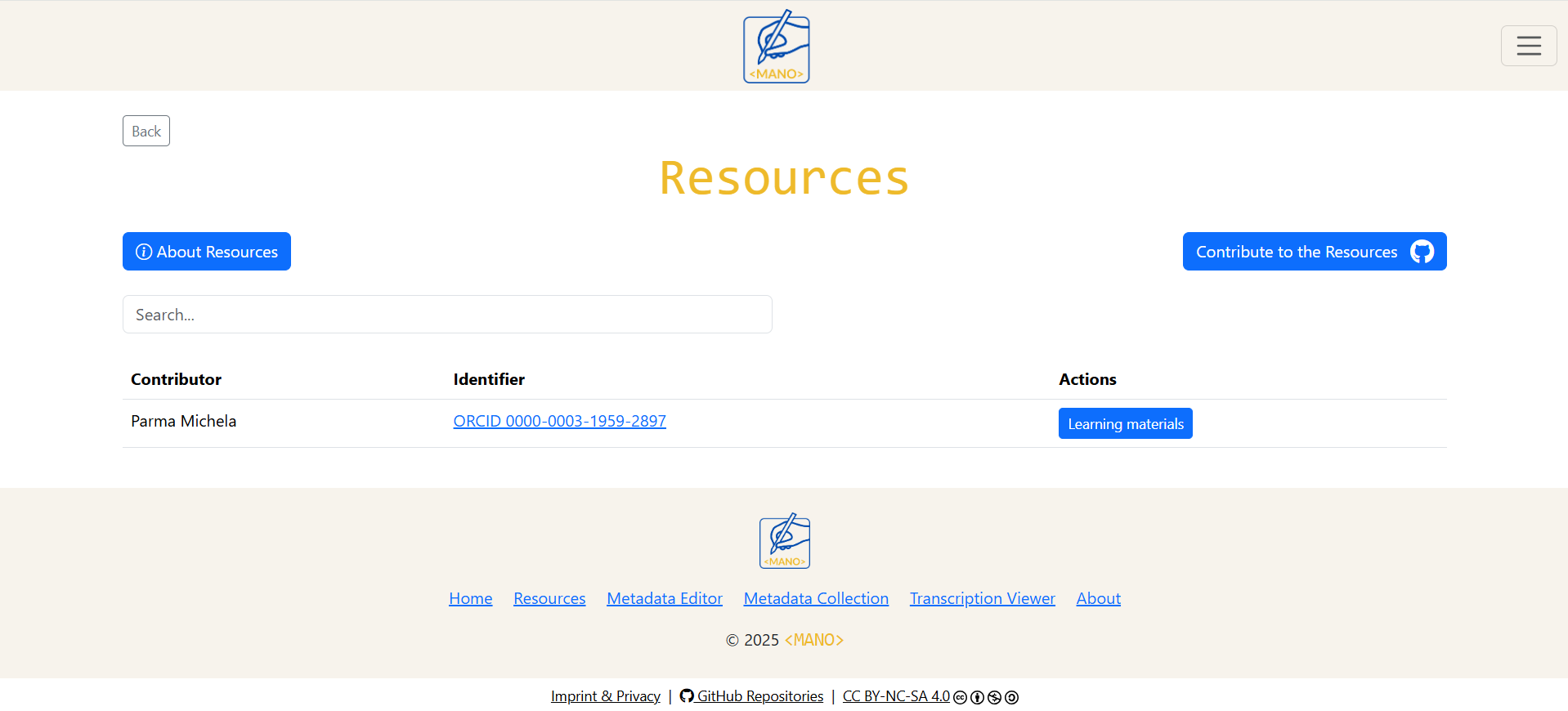

How it works

Each contributor has a personal entry in the Resources table, showing their name, an identifier such as ORCID, VIAF, or GND (when available), and a button labelled Teaching Materials.

Clicking Teaching Materials opens a list of all files shared by that contributor. Each file has a direct download link, so learners can obtain PDFs, slides, or other materials without logging into GitHub.

For users who only want to access resources, GitHub remains in the background: the MANO interface automatically loads and displays all available materials.

How to upload your teaching materials

A detailed, step-by-step user guide with FAQs and additional instructions for uploading teaching materials is available in the GitHub repository.

1. Log in to GitHub

You need a free GitHub account. If you already have one, simply sign in.

2. Open the Resources repository

https://github.com/mano-project/mano-resources

3. Create your personal folder

1. Click Add file → Create new file
2. In the file name field, type your folder name followed by /README.md:
   Surname Name Affiliation ORCID/README.md (or VIAF / GND. Users with no identifier may still contribute; the identifier field is optional but recommended.)
3. In the large text box, enter Placeholder or a brief description of yourself and your teaching area.
4. Click Commit changes.

4. Upload your teaching materials

1. Open your newly created folder.
2. Click Add file → Upload files.
3. Drag and drop your PDFs or other materials (or use “Choose your files”).
4. Click Commit changes.

Your materials will now appear automatically in the MANO Resources section of the website.

When to use it

Use the Metadata Editor when:

• learning or teaching the structure of TEI manuscript descriptions
• producing manuscript metadata for coursework, workshops, or small projects
• preparing TEI-conformant descriptions without writing XML
• contributing descriptions to the shared MANO Metadata Collection

How it works

The Metadata Editor is designed to make the TEI Manuscript Description module accessible to users without technical XML knowledge. All fields correspond to TEI elements, and the structure of the form helps ensure that each description is valid, complete, and standardised. Multiple manuscripts can be described in the same session using the Add Manuscript button.

The form is divided into six sections: file description, identification, content, physical description, history, and surrogates and literature. Each section collects specific types of information and, where available, can be enriched with Linked Open Data.

Throughout the form, small link icons next to field labels provide direct access to external documentation. Depending on the context, these links may open:

• relevant sections of the TEI Guidelines
• licence explanations (e.g. Creative Commons pages)
• authority or help pages from external services such as Wikidata or OpenLibrary

This allows users to consult definitions, usage examples, and licence information.

File description

This section records basic information about the description itself rather than the manuscript:

• file name,
• language of data entry,
• license,
• person(s) responsible for data entry, including name, surname, external identifier, and affiliation.

It corresponds to the header elements that describe the metadata record itself (modelled on TEI <fileDesc>).

Identification

The identification section gathers core cataloging information that uniquely identifies the manuscript:

• manuscript name,
• collection,
• sigle,
• alternative identifier,
• library (the holding institution), with geographical coordinates, settlement, and country

It corresponds to TEI element <msIdentifier> and related sub-elements.

Where available, repository and place fields can be linked to Wikidata entries. Using Wikidata URIs adds stable identifiers to the description and supports LOD practices by connecting the manuscript record to external authority data.

Content

This section describes what the manuscript contains. The user can add one or more textual items and for each item can provide:

• author,
• title,
• one or more page ranges,
• incipit,
• explicit,
• textual family,
• textual subfamily,
• text language,
• text genre.

It maps onto TEI elements <msContents>, <msItem>, and related components.

Author and work information can optionally be aligned with authority data from Wikidata, enabling links between the manuscript description and external information about people, works, or traditions. This strengthens the LOD dimension of the metadata and supports reuse in other environments.

Physical description

The physical description section focuses on the material aspects of the manuscript. It corresponds to TEI element <physDesc> and related elements. Users can provide the following data:

• condition description,
• material,
• height and width,
• leaves, columns, and written lines,
• number of hands and description,
• script(s) description,
• decoration description,
• music notation,
• additions,
• accompanying material description,
• binding description,
• seal(s) description.

History

The history section records information about the origin and provenance of the manuscript: where and when it was produced, and how it may have travelled or changed ownership. It corresponds mainly to <history>, <origin>, and <provenance>. This section includes:

• summary,
• origin, it includes:
  • place of origin, together with geographical coordinates, and country,
  • date of origin, expressed both as a human-readable text and as machine-readable values.
• one or more provenance block. Each one includes:
  • previous owner, together with geographical coordinates, settlement, and country,
  • period of ownership, expressed both as a human-readable text and as machine-readable values.

Origin places and institutions are linked to Wikidata, so that geographic and institutional information becomes part of a larger LOD network. This makes it easier to connect MANO descriptions with other datasets that reference the same entities.

Surrogates and literature

The final section brings together references to digital surrogates and literature references. It aligns with TEI structures for references and bibliography, such as <surrogates> and <listBibl>.

• links to digitised facsimiles, IIIF resources, or catalogue links,
• bibliographic entries connected to authority data where possible.

Bibliographic items can be enriched using OpenLibrary: searches in OpenLibrary help retrieve consistent book data (titles, authors, identifiers such as ISBN), which are stored together with a stable OpenLibrary identifier. This supports LOD by connecting local references in the description to a wider ecosystem of bibliographic data.

If a book is not available in OpenLibrary, users can still add the reference manually by providing the standard bibliographic fields: title, author(s), year of publication, publisher, place of publication, series, and ISBN. These manually entered records are handled exactly like imported ones, ensuring that all references remain complete and usable even when no external authority record exists.

Upload your description or Load sample

The system let the users to:

• Upload XML or JSON

  Users may also upload an existing manuscript description created earlier in MANO. Previously downloaded XML or JSON files can be re-uploaded into the editor, allowing records to be inspected, modified, or expanded at any time.

• Load sample

  It loads a complete, ready-made manuscript description that illustrates how the different fields work together.

Preview and validation

Two additional features help ensure accuracy:

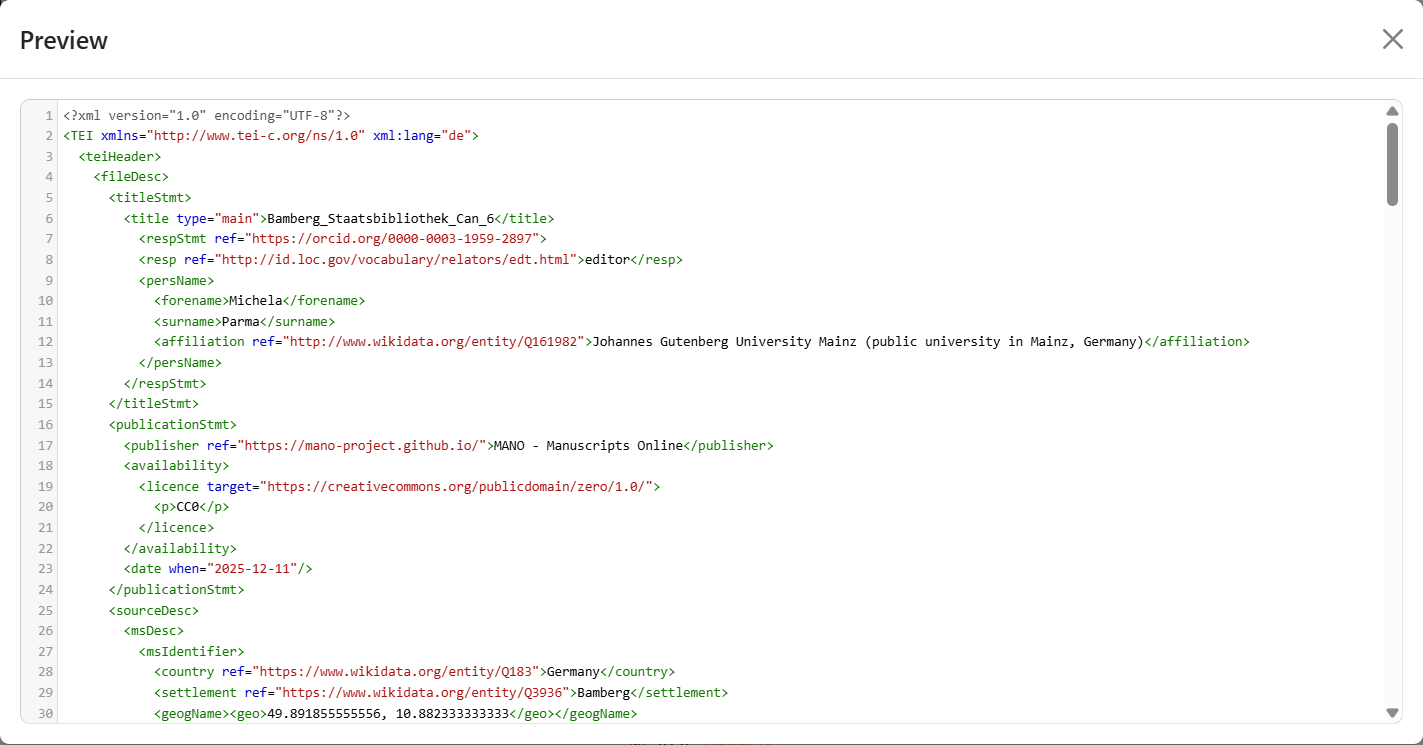

• Preview

  Generates a live TEI-XML snippet that helps learners see and understand the TEI structure behind the form.



• Validation

  Runs validation checks to ensure required elements are present, values are well-formed, identifiers are not duplicated, and referenced items are not already in the list. This helps avoid inconsistencies when contributing metadata to the shared collection. Validation distinguishes between:

  • Mandatory issues: errors that must be corrected before a download is permitted,
  • Optional checks: warnings about potential inconsistencies that do not prevent downloading.

  The validation ruleset used in the Metadata Editor is accessible here.

Output

The editor enables the user to download:

• TEI-XML file, ready for integration into larger TEI files.
• JSON file, suitable for the MANO Metadata Collection.

Users can download their files, reuse them in their own projects, or contribute them to the MANO Metadata Collection through GitHub.

When to use it

• to explore manuscript descriptions created through the Metadata Editor,
• to browse manuscripts by origin, material, language, date, or other filters,
• to view available digitizations of manuscripts (when a link is provided),
• to consult a detailed record by opening the Full Record view,
• to download descriptions in XML, JSON, or PDF format.

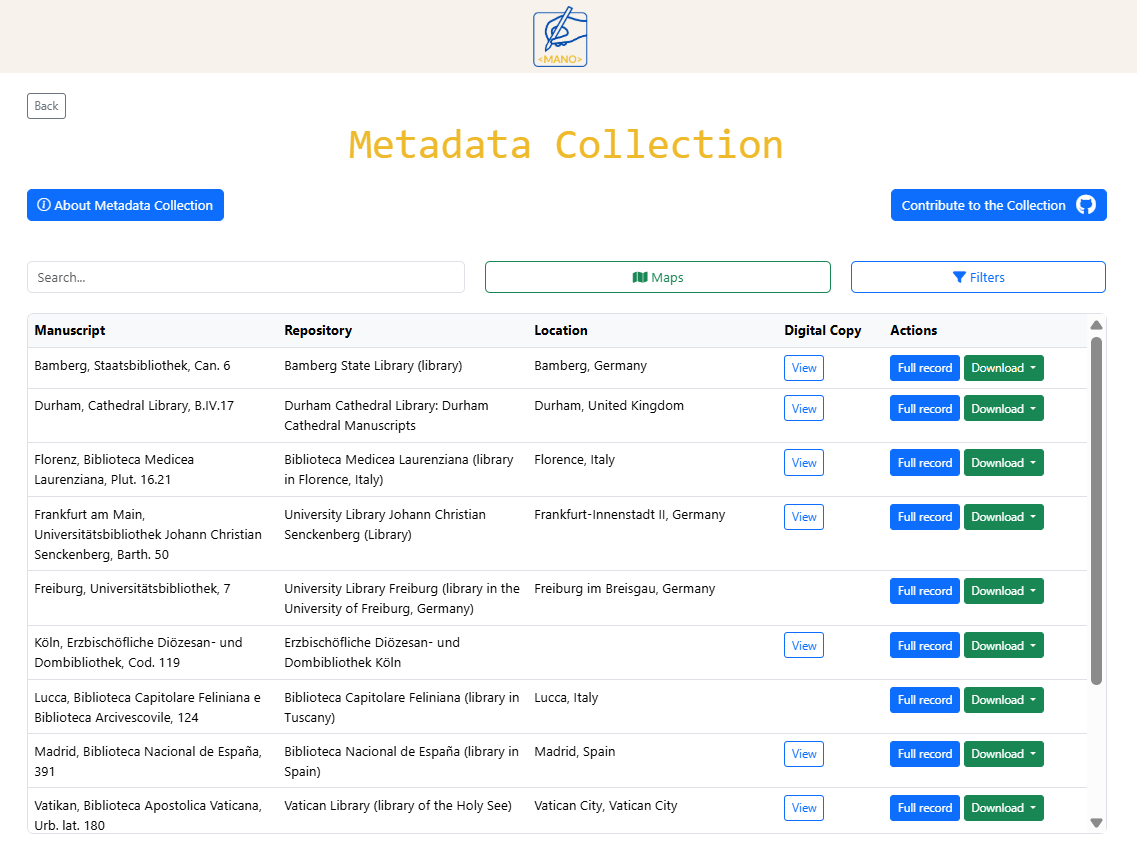

How it works

The Metadata Collection reads all description files directly from the public GitHub repository mano-metadata. There is no database: the platform loads, interprets, and displays the JSON files directly from GitHub. This design ensures transparency and long-term sustainability, as the metadata remain openly accessible in the repository.

The main table allows users to:

• search manuscripts by keyword,
• filter records by repository, date of origin, material, script, language, provenance, and more,
• open external digitizations when available,
• expand a full structured view of the description using the Full Record button,
• download metadata in JSON, TEI-XML, or PDF format.

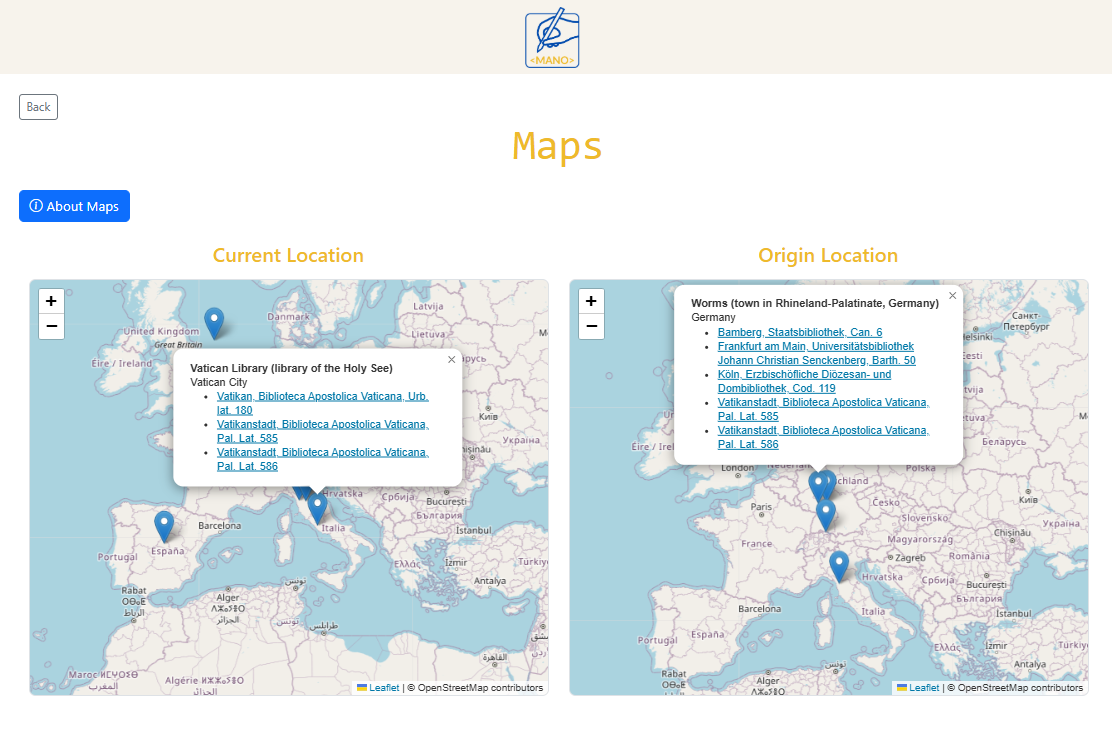

Maps: Current Location and Place of Origin

All metadata in the Collection are automatically visualised on two interactive maps:

• Current Location Map showing where manuscripts are presently held,
• Origin Location Map showing where manuscripts were produced.

Each marker on the map represents a place connected to one or more manuscripts. Clicking a marker displays a list of all manuscripts associated with that location, with direct links back to the corresponding entries in the main table.

How to contribute your descriptions

After creating a manuscript description in the Metadata Editor, users download the record in JSON format and upload it to the GitHub repository: https://github.com/mano-project/mano-metadata.

By uploading metadata to this repository, contributors agree to share them under the CC BY-NC 4.0 license. Materials may be reused for non-commercial educational purposes, provided proper attribution is given.

A detailed, step-by-step user guide with FAQs and additional instructions for uploading teaching materials is available in the GitHub repository.

1. Create the manuscript description using the Metadata Editor.
2. Download the resulting JSON file.
3. Log into GitHub with a free account.
4. Navigate to the mano-metadata repository.
5. Upload the JSON file to the data folder.
6. Commit the changes.

Once the JSON file is stored in the repository, the MANO platform automatically detects it and displays the new description in the Collection.

When to use it

• to upload and view TEI-XML transcriptions in a structured way,
• to explore or teach TEI markup using a visual, browser-based tool,
• to edit the XML code and preview the results immediately,
• to work with example material using the built-in Load sample function.

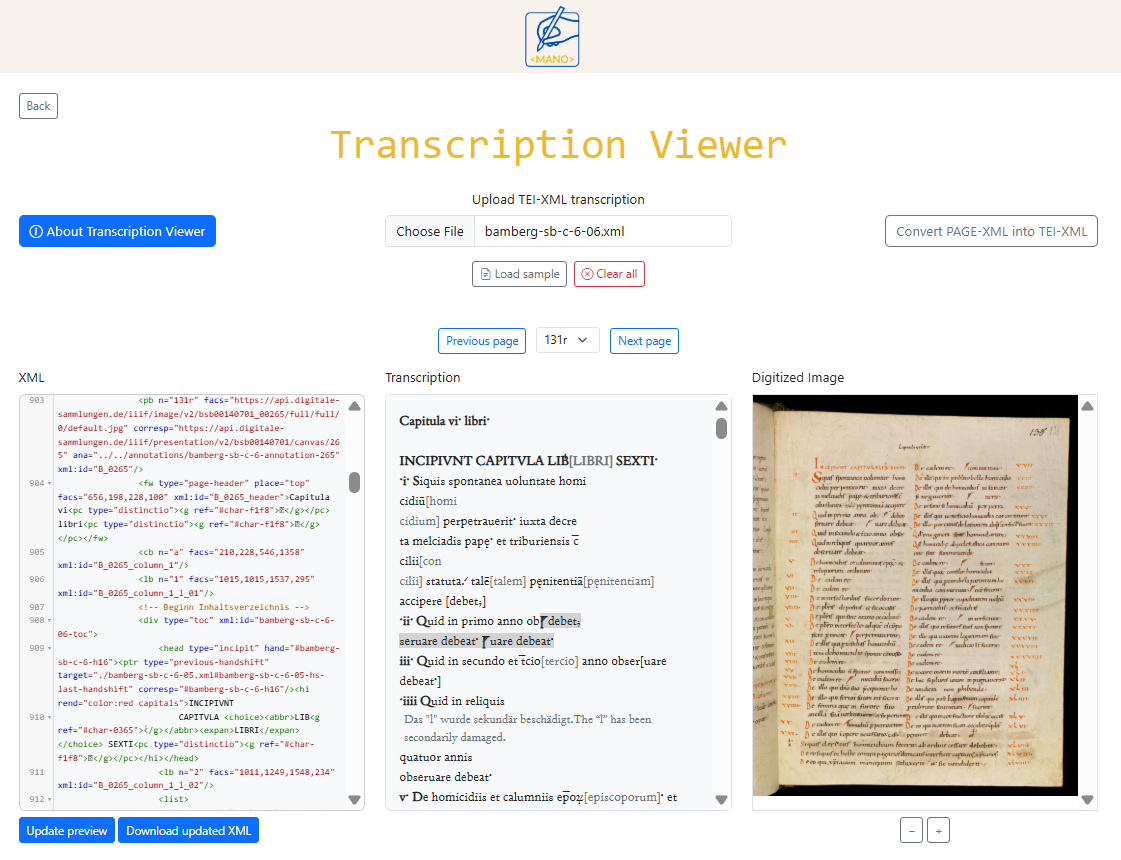

How it works

The interface consists of three synchronised panels:

• XML: shows the transcription as editable XML,
• Transcription: provide a readable visualisation of the transcription,
• Digitized Image: displays images, when the link is available.

Upload your transcription or Load sample

Users can add their own transcription by clicking Choose file and selecting a TEI-XML file from their computer. The file is read directly in the browser, and the three panels update automatically.

The Load sample button provides an example transcription for users who want to experiment with the tool or understand its functionality.

Page navigation

When a TEI-XML file is uploaded, the system automatically reads the XML structure and converts it into formatted, readable text. If the transcription includes page breaks (<pb>), the platform automatically generates a page navigation system.

Facsimile synchronisation

When the XML includes direct links to digitised images, the corresponding facsimile appears in the right-hand panel. The image viewer supports zoom controls, and clicking through the transcription updates the displayed image accordingly. If no image link is provided in the XML, this panel remains empty.

Editing and updating the transcription

The XML code can be edited directly within the Viewer. After making changes, users can click Update Preview to regenerate the rendered text and refresh image synchronisation. The updated transcription can then be downloaded as a new TEI-XML file.

Convert PAGE-XML into TEI-XML

MANO includes a dedicated conversion tool that transforms one or more PAGE-XML files into a unified TEI-XML transcription. This tool is intended for situations where HTR/OCR software exports PAGE-XML instead of TEI. Users can upload multiple PAGE files, which MANO merges into a single TEI document containing page breaks, region ordering, and reading text. The resulting TEI file can be downloaded and opened in the Transcription Viewer for further inspection, editing, and alignment with images.

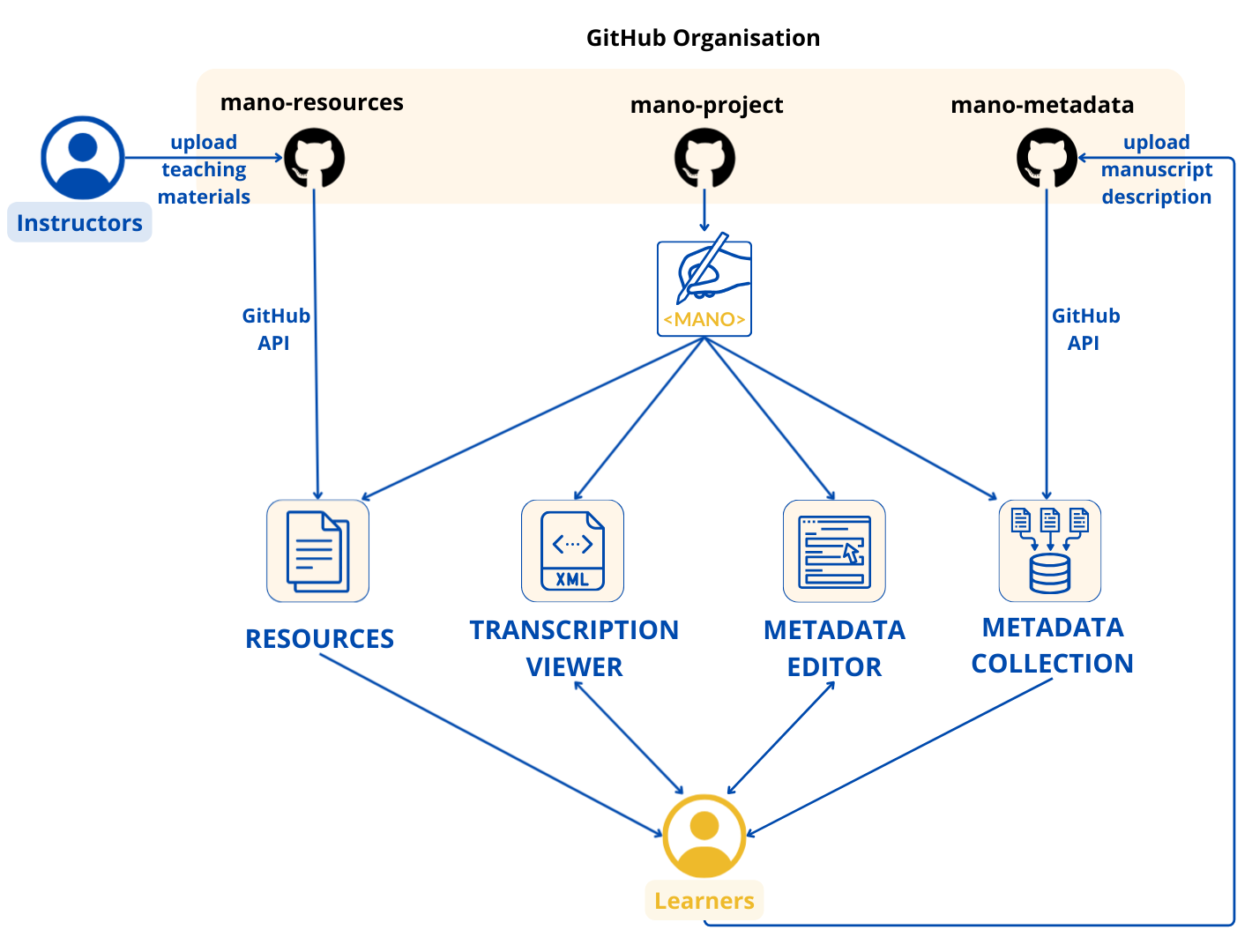

GitHub-Based Ecosystem

MANO uses GitHub both as a hosting environment (via GitHub Pages) and as a storage layer for shared materials. The platform consists of three standalone repositories:

• mano-project: application code, documentation, and static assets,
• mano-resources: teaching materials contributed by instructors,
• mano-metadata: user-contributed manuscript descriptions in JSON.

Data is retrieved at runtime using the GitHub REST API. The application reads repository contents (teaching materials, JSON metadata records) directly in the browser without any intermediary service. This serverless architecture simplifies deployment and ensures long-term transparency: all data remains visible, versioned, and accessible in the repositories themselves.

Linked Open Data Integration

MANO integrates authority data through external LOD services. These lookups are performed on-demand and client-side:

• Wikidata API: used for persons, institutions, places, and affiliations.
• OpenLibrary API: used for data in literature references.

Selected entities contribute both a human-readable label and a stable URI. These identifiers are included in the exported JSON and TEI-XML manuscrip description, improving interoperability and aligning MANO records with broader cultural heritage datasets.
